Introduction!
In industrial plants, refineries, and cross-country pipelines, Industrial Piping Inspection Masterclass & Testing Standards play a vital role. Process piping systems act as the primary arteries carrying hazardous and high-pressure fluids, where a single weld failure or wall thinning can lead to catastrophic plant shutdowns or safety hazards.
This short masterclass breaks down the essential standards governed by ASME B31.3 (for design and construction) and API 570 (for in-service inspection, rating, repair, and alteration). Whether you are a QA/QC inspector or a site engineer, this guide gives you the practical clarity you need on the field.

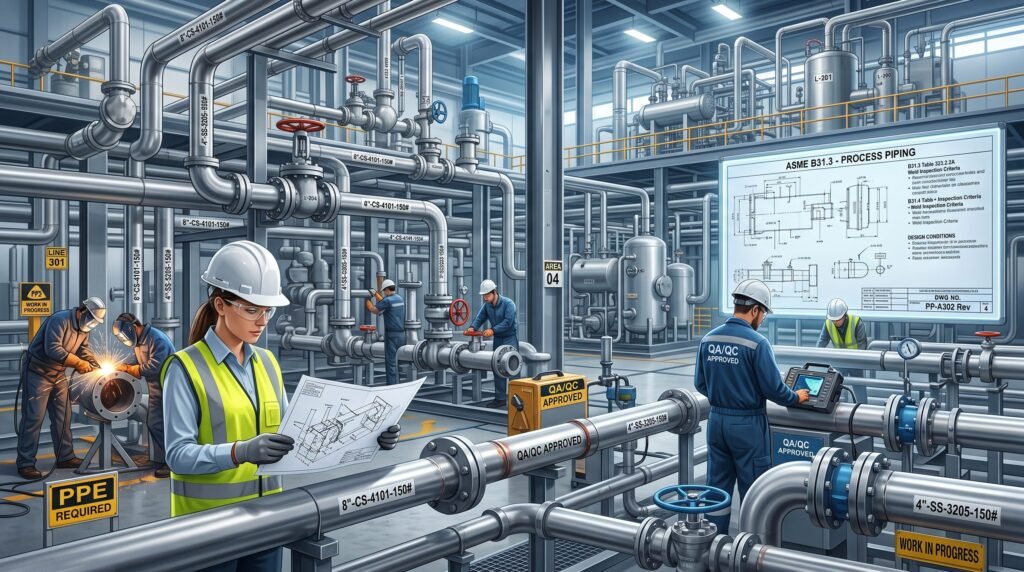

1: Construction & Design Standards (ASME B31.3).
Before any piping system goes live, it must be designed and constructed to withstand strict operational stresses, temperature extremes, and internal pressures.
The Core Standard:
ASME B31.3 (Process Piping) is the global benchmark used for petroleum refineries, chemical plants, and pharmaceutical facilities.
Key Inspection Focus:
During fabrication and installation, inspectors must rigorously check joint fit-ups, alignment, material traceability (Mill Test Certificates), and welding documentation.
Non-Destructive Examination (NDE):
Depending on the fluid service category (Normal, Category D, or Severe Cyclic), ASME B31.3 mandates specific percentages of Radiographic Testing (RT) or Ultrasonic Testing (UT) on butt welds.

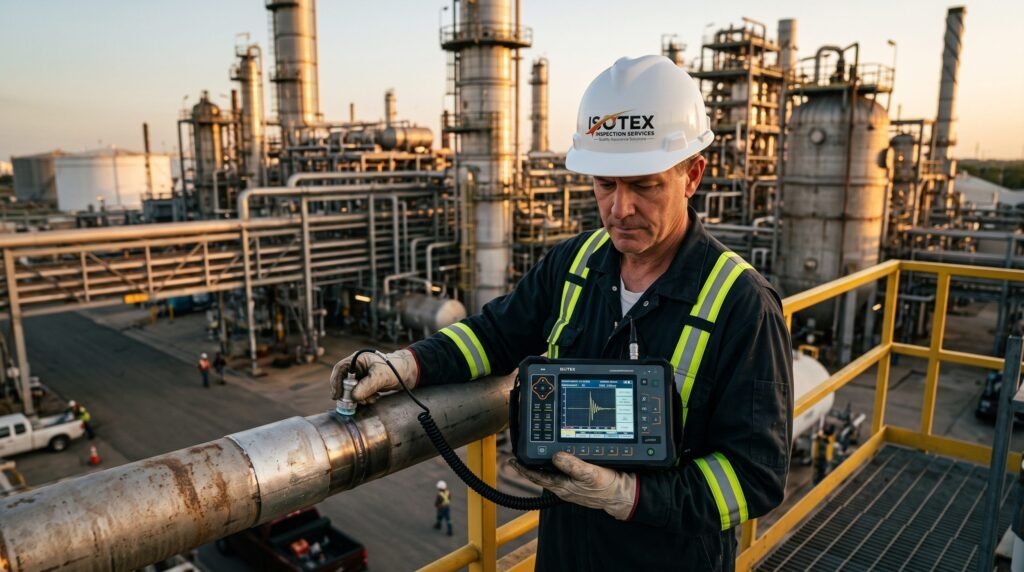

2: In-Service Inspection & Integrity (API 570).
Once a piping system is operational, its lifespan depends heavily on regular monitoring, thickness measurements, and condition assessment.
The Core Standard:
API 570 (Piping Inspection Code) governs the in-service inspection, rating, repair, and alteration of piping systems that have already been placed into service.
Damage Mechanisms:
Inspectors must watch out for common industrial threats such as internal/external corrosion, Corrosion Under Insulation (CUI), erosion, and mechanical fatigue.
Thickness Monitoring Locations (TMLs):
API 570 requires establishing specific TMLs to accurately measure remaining wall thickness using Ultrasonic Testing (UT) and calculate the remaining corrosion-free service life.

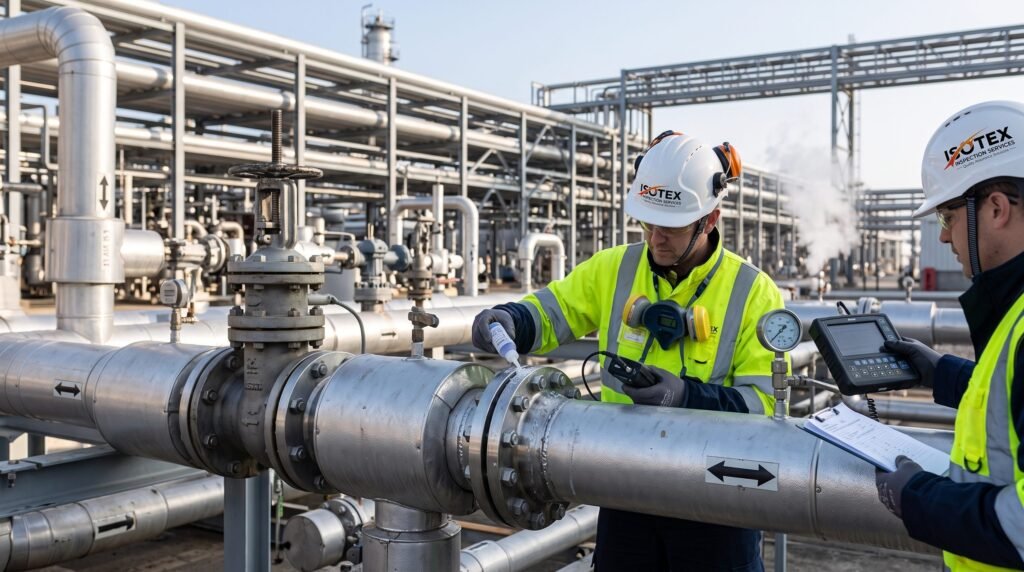

3: Mandatory Pressure Testing & Leak Checks.
No piping system is cleared for operation without verifying its structural leak-tightness under pressure.
Hydrostatic Testing:
As required by ASME B31.3, the standard pressure test is hydraulic, using water at a pressure typically 1.5 times the design pressure, held for a specified duration to check for structural integrity.
Pneumatic Testing:
Used only when hydrotesting is impractical due to foundation weight limits or process contamination risks. It requires extreme safety precautions because of the compressed gas hazard.
Sensitive Leak Checks:
Performed at lower pressures using bubble solutions or specialized detectors to ensure zero leakage at flanges, valves, and threaded connections.
Masterclass Conclusion!
You have successfully completed the core modules on Industrial Piping Inspection and Testing Standards.
By mastering ASME B31.3 construction rules and API 570 in-service maintenance procedures, you are now fully equipped to prevent piping failures, ensure regulatory compliance, and execute reliable quality control inspections in industrial plants.
FAQs
Q1: What is the difference between ASME B31.3 and API 570?
Answer: ASME B31.3 is the standard used for the design, materials, fabrication, and testing of new process piping systems. In contrast, API 570 is the code used for the in-service inspection, rating, repair, and alteration of piping systems that are already operating in the plant.
Q2: Why is hydrostatic testing mandatory for piping systems?
Answer: Hydrostatic testing is required by ASME B31.3 to verify the structural integrity and leak-tightness of a newly installed or repaired piping system. It uses water pressurized typically to 1.5 times the design pressure to ensure the welds and components can safely handle operational stresses
Q3: What are TMLs in API 570 piping inspection?
Answer: TMLs stand for Thickness Monitoring Locations. Under API 570, these are specific designated points on a piping system where periodic thickness measurements (using Ultrasonic Testing) are taken to monitor corrosion rates and calculate the remaining safe service life of the pipe
.
