What is Magnetic Particle Testing (MPT)?
Magnetic Particle Testing (MPT), also known as Magnetic Particle Inspection (MPI), is a widely used Non-Destructive Testing (NDT) method for detecting surface and near-surface defects in ferromagnetic materials such as iron, steel, nickel, and cobalt. This technique is essential in industries like aerospace, automotive, oil and gas, and manufacturing to ensure component reliability and safety.
MPT is a fast, cost-effective, and highly sensitive method to identify cracks, porosity, and inclusions that could lead to component failure. If you need a reliable and efficient metal testing method, this guide will walk you through everything you need to know about MPT.
Why Choose Magnetic Particle Testing?
Magnetic Particle Testing offers several advantages compared to other NDT methods like Eddy Current Testing (ECT), Liquid Penetrant Testing (LPT), and Radiographic Testing (RT). Here’s why industries prefer MPT:
Fast & Cost-Effective: Unlike RT or ultrasonic testing, MPI provides instant results, making it more efficient.
Highly Sensitive: Detects even the smallest surface and near-surface discontinuities.
Easy to Apply: Requires minimal surface preparation and works well on rough surfaces.
Portable & Versatile: Can be performed in laboratories or on-site using portable equipment.
Immediate Indications: Visible indications make it easier for inspectors to analyze defects in real time.
Types of Magnetic Particle Testing
1. Dry Magnetic Particle Testing (DMPT)
✔ Best for rough surfaces and large parts ✔ Uses colored magnetic powders ✔ Suitable for detecting deep subsurface defects
2. Wet Magnetic Particle Testing (WMPT)
✔ Ideal for smooth surfaces and minute cracks ✔ Uses fluorescent particles in an oil/water suspension ✔ Provides higher sensitivity for fine cracks
Step-by-Step Magnetic Particle Testing Process
MPT involves five key steps to ensure accurate and reliable defect detection:
1. Pre-Cleaning
Before testing, the surface must be clean and dry to remove contaminants like oil, grease, and dirt that could interfere with defect visibility.
2. Magnetization
A magnetic field is introduced into the material using either a direct or indirect magnetization technique:
- Direct Magnetization: Current is passed through the material to create a magnetic field.

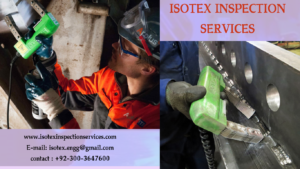

- Indirect Magnetization: A magnetic yoke or coil is placed around the material to induce a field.
3. Application of Magnetic Particles
Magnetic particles (either dry powder or wet suspension) are applied to the material while the magnetic field is active. These particles accumulate around defects, forming visible indications that highlight flaws.
4. Inspection & Interpretation

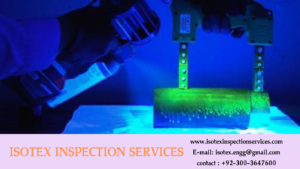

The inspector examines the part for particle accumulation, which indicates potential cracks, voids, or other imperfections. A UV light is sometimes used for better visibility.
5. Post-Cleaning & Demagnetization
After the inspection, the test surface is cleaned to remove magnetic particles, and the component is demagnetized to prevent unwanted residual magnetism.
Industries That Rely on Magnetic Particle Testing
MPT is crucial for industries that require structural integrity and safety compliance. Some of the major industries using this method include:
1. Aerospace ✈️
- Inspection of turbine blades and aircraft components.
2. Automotive 🚗
- Testing engine components, gears, and castings for defects.
3. Oil & Gas ⛽
- Pipeline inspections to prevent leaks and structural failures.
4. Manufacturing & Fabrication 🏭
- Ensuring the quality of welds, castings, and forgings.
5. Power Generation ⚡
Checking gas turbine blades for potential cracks.
Advantages & Limitations of MPT
✅ Advantages:
- Quick, cost-effective, and provides instant results.
- Highly sensitive for detecting small cracks and discontinuities.
- Portable equipment makes it ideal for field inspections.
- Works well on both stationary and mobile components.
❌ Limitations:
- Can only be used on ferromagnetic materials.
- Not suitable for detecting deep subsurface flaws.
- Post-cleaning and demagnetization may be required.
- Thick coatings or paint can interfere with testing accuracy
MPT vs. Other NDT Methods
|
NDT Method |
Best For |
Limitations |
|
Magnetic Particle Testing (MPT) |
Surface and near-surface cracks in ferromagnetic materials |
Not effective for non-magnetic materials |
|
Eddy Current Testing (ECT) |
Conductive materials, multi-layered structures |
Less effective for deeply buried defects |
|
Liquid Penetrant Testing (LPT) |
Non-porous materials, very fine cracks |
Requires extensive pre-cleaning |
|
Ultrasonic Testing (UT) |
Subsurface defects in metals and composites |
Requires skilled operators |
Choosing the Right NDT Method
Selecting the right Non-Destructive Testing (NDT) method depends on:
- Material Type: MPT works best for ferromagnetic materials.
- Defect Location: If you need deep subsurface analysis, consider Ultrasonic Testing (UT).
- Surface Condition: For rough surfaces, dry MPT is recommended, while wet MPT is better for smooth surfaces.
- Budget & Time Constraints: MPT is one of the most cost-effective and fastest NDT methods.
Conclusion
Magnetic Particle Testing (MPT) remains one of the most effective non-destructive testing methods for identifying surface and near-surface defects in ferromagnetic materials. Its speed, accuracy, and affordability make it a preferred choice in aerospace, automotive, oil & gas, and manufacturing industries.
If you’re looking for reliable, professional MPT services, our expert team can help you ensure safety, compliance, and efficiency in your operations.
Get in touch with us today for expert MPT inspection services! 🚀
1. What is Magnetic Particle Testing (MPT)?
Answer: Magnetic Particle Testing (MPT), also known as Magnetic Particle Inspection (MPI), is a non-destructive testing method used to detect surface and near-surface discontinuities in ferromagnetic materials like iron, nickel, and cobalt. It involves magnetizing the material and applying magnetic particles to identify defects through visible indications on the surface.
2. How does magnetic particle testing work?

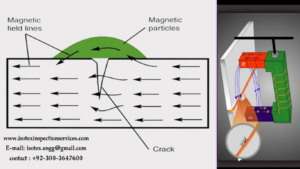

Answer: MPT works by magnetizing the test object and then applying ferromagnetic particles to its surface. If there’s a discontinuity, such as a crack, the magnetic field is distorted, causing the particles to accumulate at the defect site, forming a visible indication. This allows inspectors to identify and evaluate defects based on the particle patterns.
3. What is the difference between Dry and Wet Magnetic Particle Testing?
Answer: Magnetic Particle Testing (MPT) can be performed using either Dry or Wet methods, depending on the material and the type of defect being inspected.
Dry Magnetic Particle Testing (DMPT):
✔️ Uses fine, pigmented magnetic powder applied directly to the surface.
✔️ Ideal for rough, uneven surfaces like castings and welds.
✔️ Detects surface and slightly subsurface defects.
✔️ Works well in high-temperature environments.
Wet Magnetic Particle Testing (WMPT):
✔️ Uses iron oxide particles suspended in liquid (oil or water).
✔️ More sensitive than dry MPT, detecting finer cracks and flaws.
✔️ Suitable for smooth surfaces and large components.
✔️ Often used with UV light for enhanced visibility of defects.
Both methods are highly effective, but dry MPT is best for rough surfaces and deeper defects, while wet MPT excels in detecting finer, surface-level flaws with high precision. The choice depends on the component type and industry requirements.
